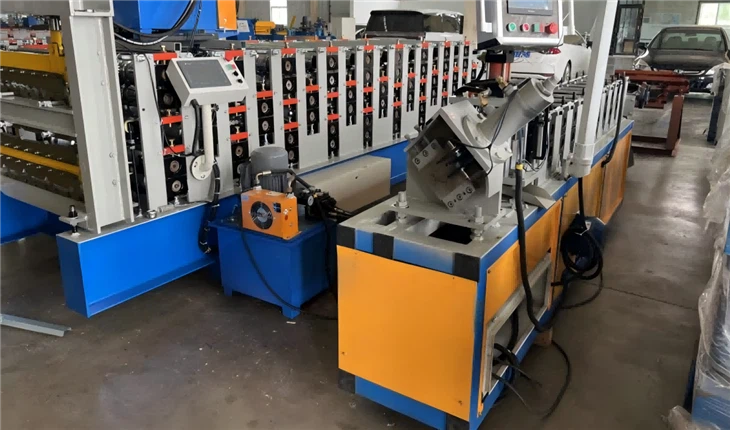

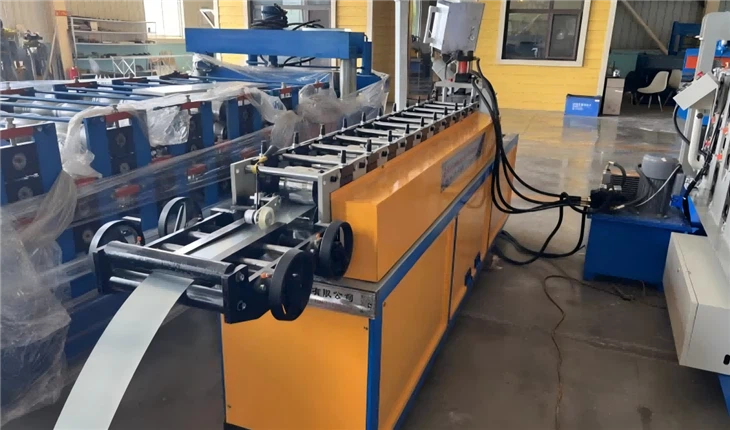

The C Channel Roll Forming Machine is a fully automatic cold forming production line dedicated to manufacturing standard C-shaped steel channel profiles for the construction and decoration industry. It integrates uncoiling, leveling, punching, forming and cutting processes into one continuous workflow, effectively solving the problems of low manual production efficiency and inconsistent product dimensions. The C Channel Roll Forming Machine adapts to galvanized steel, cold-rolled steel and other common raw materials, meeting the mass production demands of building structural accessories.

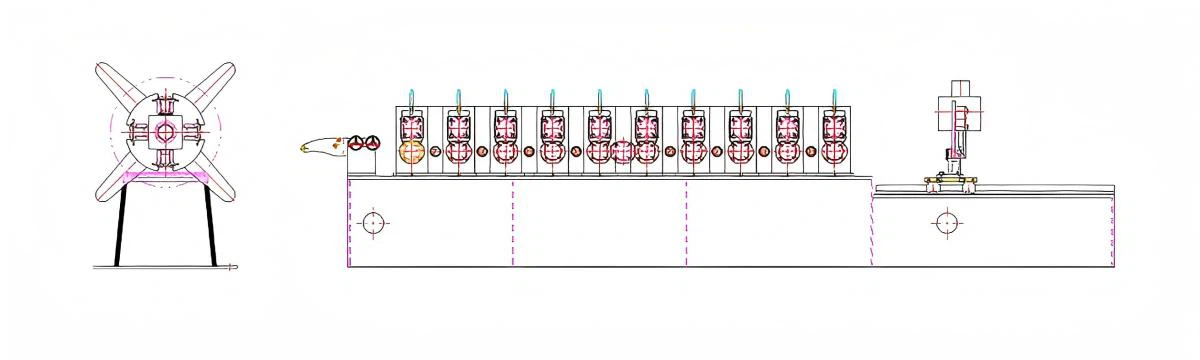

Uncoiler → Feeding Device → Leveling Device → Main Forming Machine → Hydraulic Pump Station System → PLC Electrical Control System → Punching Device → Shearing System → Finished Product Rack
Product Features
1. High Forming Precision & Stable Quality
2. Fully Automatic Intelligent Operation
3. Strong Specification Compatibility
4. High Production Efficiency
5. Durable & Low Maintenance Cost
The equipment features precise flying cutting technology, which can cut profiles into fixed or multiple lengths accurately, greatly improving product qualification rate and production stability for pipe and profile processing factories.
Specification
|
Item |
Details |
|
Product Name |
C Channel Roll Forming Machine |
|
Material Thickness |
0.3-1.2mm |
|
Feeding Width |
As customer's requirement |
|
Effective width |
As drawing |
|
Roller Shell Material |
Cr12, HRC58-60 |
|
Forming Stations |
12-28 roller stations |
|
Shaft Material |
45# steel / Cr12 |
|
Forming Speed |
10-36 m/min |
|
Voltage |
380V/50Hz/3P (as required) |
|
Transmission |
1'' Chain drive |
|
Motor Power |
4-11 kW |
|
Cutting Blade Material |
Cr12, HRC58-60 |
|
Cutting Type |
Hydraulic non-stop cutting |
|
Control System |
PLC control system |
|
Weight |
1.8-2.5tons |
|
Size |
Around 5.5X0.8X1.3M |
Application Scope (just for reference)
The C Channel Roll Forming Machine features versatile performance and serves multiple industrial fields, with typical application scenarios classified into 5 key aspects as follows:
1. Steel Structure Factory Buildings
2. Interior Decoration Engineering
3. Construction Supporting Accessories
4. Mechanical Equipment Support
5. Transportation & Container Industry
It is an ideal core device for modern profile processing enterprises to improve production capacity and optimize product quality.
