Tianjin Binhai Yashanway Import and Export Co., Ltd. is one of the leading manufacturers and suppliers of c channel rolling machine in China, specialized in providing high quality customized service. If you're going to wholesale the newest c channel rolling machine made in China, welcome to get free sample from our factory. For price consultation, contact us.
Introduction

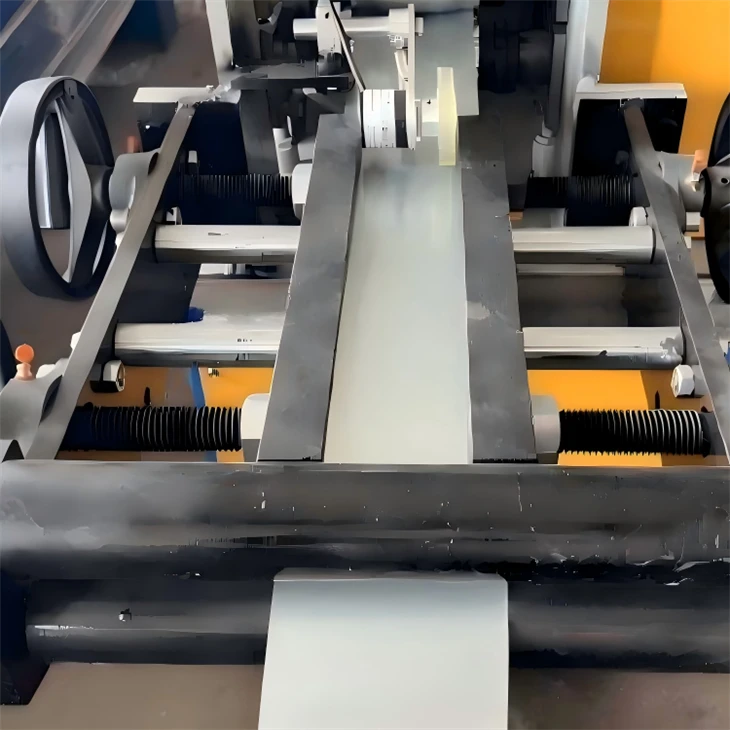

The C Channel Rolling Machine is a fully automatic cold-rolling equipment specifically designed for batch processing of C-section steel profiles, widely used in the production of steel structures, photovoltaic mounting systems, and building purlins. The machine employs a multi-stage progressive rolling forming process, automatically completing the entire sequence of operations-including steel strip leveling, continuous shaping, punching, and length-cutting-without requiring secondary processing. It can roll standard C-shaped steel sections directly from ordinary galvanized or cold-rolled steel strips in one pass, producing smooth surface finishes and precise dimensions, effectively solving common issues such as deformation and low accuracy associated with traditional profile manufacturing methods.
Specification
|
Item |
Details |
|
Material Thickness |
0.3-1.2mm |
|
Feeding Width |
Customizable |
|
Effective width |
As drawing |
|
Roller Shell Material |
Cr12, HRC58-60 |
|
Forming Stations |
12-28 roller stations |
|
Shaft Material |
45# steel / Cr12 |
|
Forming Speed |
10-36 m/min |
|
Voltage |
380V/50Hz (as required) |
|
Transmission |
1'' Chain drive |
|
Motor Power |
4-11 kW |
|
Cutting Blade Material |
Cr12, HRC58-60 |
|
Cutting Type |
Hydraulic non-stop cutting |
|
Control System |
PLC control system |
Application Fields
▪️Robust and durable frame structure
▪️Resistant to deformation over extended operation
▪️Low failure rate and long service life
▪️Simple and convenient daily maintenance
▪️Wide application and high market recognition
