Somebody ever wondered how steel pipe manufacturer make sure pipelines are safe to carry water, oil, gas or some other fluids? The answer is : hydro testing(do hydro testing for pipes and tubes). Then how to do pipe hydro testing? In simple terms, hydro testing in pipe is a way to check if pipes or tubes are strong enough and no leak before pipes be used. It is like to give pipes a "pressure test" with water, to make sure pipes dont come to any question when they are working under pressure. This test is used in everywhere-from the under water in your house street to the long pipelines that carry oil/gas across some countries. And at the heart of this important test is Pipe Hydro Testing Machine. This machine not only a tool, it is very important for keeping pipelines safe, reliable, and meet global safety standards.
Many people may ask: "What is hydro testing in piping?" - The pipe hydro pressure test is used to verify the integrity of the pipeline. Regarding pipeline, the standard procedure includes the following steps: Inject liquid (usually water) into the pipeline, and then apply pressure into the pipeline to reach an acceptable test pressure.
Let's break down this process step by step. First, before testing, the ends of the pipes will be sealed with pipe caps or blind plates. Then, the pipes will be completely filled with water - bubbles are not allowed, because air will make the test results are not correct. After the pipes are filled with water, a pipe hydro testing machine will be used to inject more water into the pipes, then increasing the pipe internal pressure. The pressure will be raised to a level higher than the standard pressure - for example: according to ASME B31.3 standards, it is usually 1.5 times the design pressure. This extra pressure helps to identify those weak points, cracks or leaks that may not be apparent under normal operating conditions.

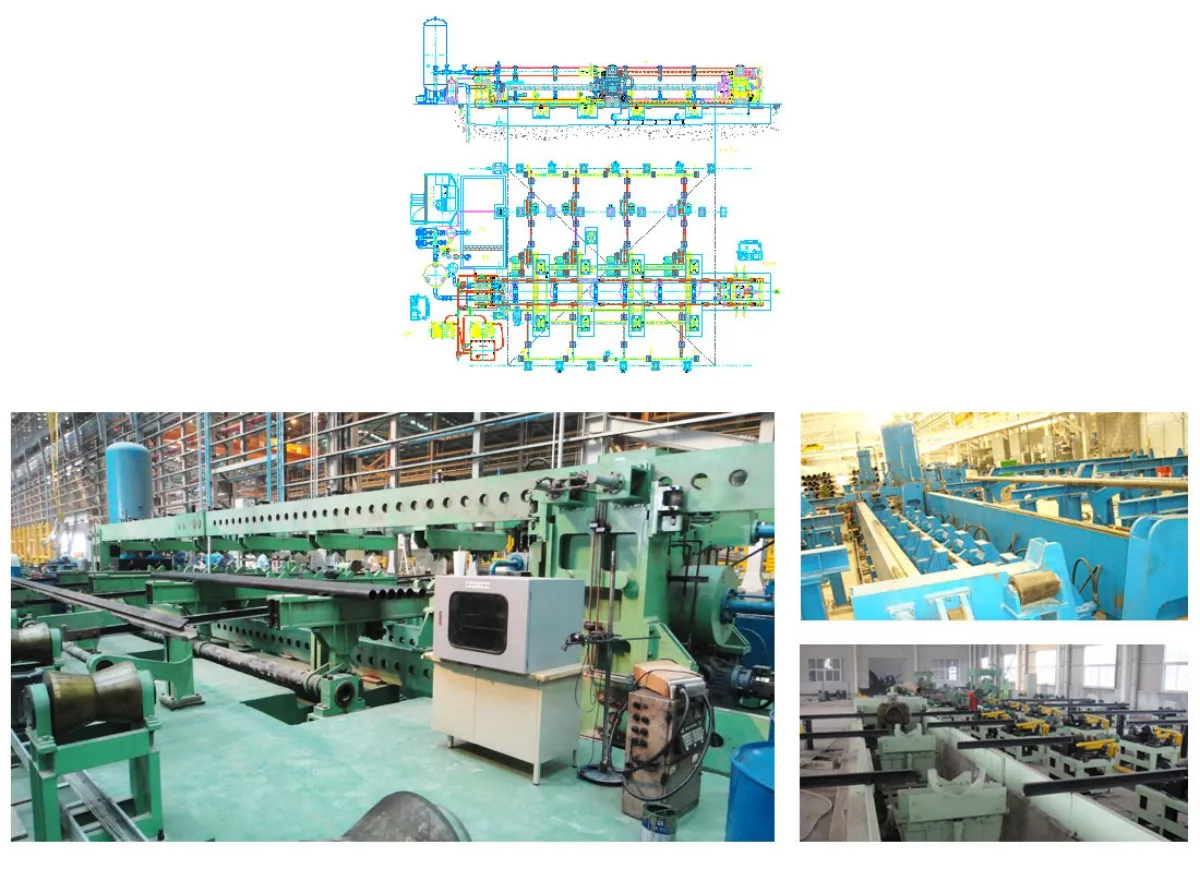

The Pipe Hydro Testing Machine comes in order to do pipe water pressure test safely and accurately. This machine comes with pumps which can generate high pressure, pressure gauges to monitor the pressure, and safety features like pressure relief valves to prevent over-pressurization. Some machines are manual, while others are automated with computer systems that record data and alert operators if there is a problem. For larger projects, like testing long-distance pipelines, Pipeline Hydro-Testing Equipment is used. This equipment is bigger and more powerful, can handle pipes with several meters diameter and lengths of 25 meters even more. Pipeline Hydro-Testing Equipment often includes features like automated clamping systems, water storage tanks, and data recording tools to make the testing process easy and fast.
Why is hydro testing so important?
Imagine this, there is a pipeline that carries drinking water to a city. If there is a small leak for pipeline, it could waste millions of liters of water or even contaminate the water supply. For pipelines that carry oil or gas, a leak could cause environmental damage, fires, even explosions. Hydro testing helps prevent these problem in advance. According to industry engineerings said, hydro testing is one of the most effective ways to ensure pipeline safe. It verifies two key things: leak resistance and strength. Leak resistance means no fluid can leak through cracks, welds, or joints. Strength means the pipe can handle the pressure without bending, breaking, or deforming. If there are no these checks, pipelines would be risky to use for people and the environment.
So now we know why Pipe Hydro Testing Machine comes. Let us introduce Pipe Hydro Testing Machine work step to you. The first step, clean the pipes and remove dirt. Then, the pipe ends are sealed. Next, the pipe is filled with water. During this process, the air venting devices in Pipeline Hydro-Testing Equipment will remove all airs. Once the pipe is full water, the Hydro Testing Machine For Pipe starts pressurizing. The pressure is increased slowly-cant too fast, because sudden pressure spikes can make the pipes damage. Operators need to notice pressure gauges closely, and once the target pressure is reached, they hold it for some times. This holding time can be anywhere from several seconds to minutes, depending on the type of pipe and the standards.
During the holding pressure, inspectors need to check if leaks or not. Sometimes, they will to see if there is water dripping from joints or welds. Other times, they use tools like ultrasonic leak detectors . The Pipe Hydro Testing Machine also monitor pressure drops. If the pressure stays steady, then good. If it drops, it means somewhere is leak. After the holding pressure, the pressure is released slowly, and the pipe is drained. If no leaks or weaknesses be found, it means thet the pipes pass the test, it is safe to use. If find someproblems, the pipe will be repaired and tested again until pass hydro test.
The steel pipe water pressure test is not optional - for some industries, it is a mandatory requirement. Organizations such as the American Society of Mechanical Engineers (ASME), the International Organization for Standardization (ISO), and the American Petroleum Institute (API) have strict regulations for pipeline water pressure tests. For instance, the B31.3 standard of the American Society of Mechanical Engineers requires most industrial pipelines to undergo water pressure tests, while the RP 1110 standard of the American Petroleum Institute sets standards for oil and gas pipelines. It is important to do steel pipe hydro tests with water pressure testing machines.
Now, let's talk about where hydro testing is used.
It is not just for new pipes-also used pipes are tested regularly to make sure these pipes still safe.
Here are some common applications as below:
1.Water and Wastewater Systems:
Municipal water mains, sewage pipes, and water treatment plants all must to do hydro test. A Pipe Hydro Testing Machine can ensure that drinking water doesn't leak, and sewage pipe doesn't contaminate the environment. For example, when a city installs new water pipes in a neighborhood, the contractor will use a Hydro Testing Machine For Pipe to test each section before connecting it to the main system. This step can ensure that the people can use safe and clean water, meanwhile avoid waste or leaks.
2.Oil and gas industry:
Long-distance oil pipelines, gas distribution networks, and refineries must use Pipeline Hydro-Testing Equipment too. These pipelines carry flammable and toxic fluids, so safety is very important. A single leak can lead to catastrophic consequences-like the 2010 Deepwater Horizon oil spill, which was partially caused by faulty equipment that wasn't properly tested. Now, stricter regulations require regular hydro testing with high-quality Pipeline Hydro-Testing Equipment to prevent disasters come again.
3.Industrial:
Chemical factories, power factories, and some manufacturing factories also use pipeline water pressure testing machines to do hydro test that transport steam, chemicals, or other industrial liquids. For example, the boiler pipelines in power factories must do water pressure tests before using, to ensure that they can withstand high pressure and high temperatures. Pipeline water pressure testing machines can ensure the safe operation of these pipelines and prevent explosions or malfunctions.
4. Fire Protection Engineering
For some fire protection projects, contractors usually mentioned that all steel pipes before delivering must be done hydro test, without hydro test pipes will be refused. What's more, supplier must submit hydro test report. This report is very importand when new building acceptance.
5. Boats and Automobile:
Boats, and some automobiles all use pipes that require water pressure testing. For example, the fuel pipes on boats must be leak-free to prevent fires. The water pressure testing equipment used for the pipes is employed to test these pipes to ensure they can withstand the pressure of fuel flow without leaking.
With the advancement of technology, pipe hydro test machines have also been continuously evolving, becoming more efficient, more accurate, and easier to use. Nowadays, pipe hydro test machine are equipped with digital displays, which can display real-time pressure data. Some machines can even be remotely controlled via smartphones or computers. Automated pipe hydro test machine can conduct tests around the clock, reducing the need for manual labor and improving production speed.
Choosing a suitable pipe hydro test machine is very important for customers. When selecting the equipment, many factors need to be considered, including the size and type of the tested pipes, the required pressure range, and standard that need to be met. For small pipelines, a compact and portable hydro test machine is usually sufficient. For large pipelines, a powerful with a high-pressure pump and automatic functions is needed. In addition, choosing a professional manufacturer of steel pipe is also very important. Yashanway is a reliable, professional and best choice. Our company has several professional equipment design engineers who can design a water pressure testing machine suitable for your needs based on different customer requirements, and we also provide professional technical guidance to teach operators how to set up the machine, conduct tests and interpret the results.
Anyway, the water pressure test is a crucial process that ensures the safety of the pipeline. The pipe hydro testing machine is essential for verifying whether the pipeline is sturdy and leak-free, and it can prevent disasters from occurring and ensure compliance with global standards.
If you need a pipeline water pressure testing machine, please feel free to contact us at Yashanway.
